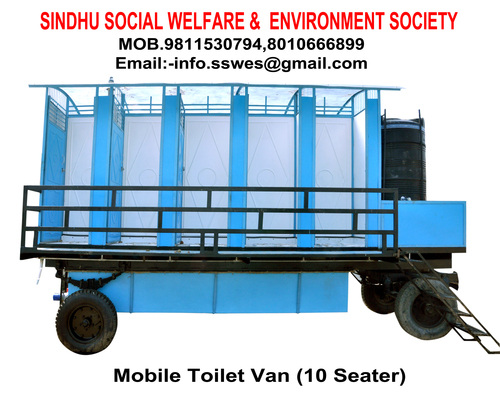

Mobile toilet van 10 seater

Mobile toilet van 10 seater
Mobile toilet van 10 seater
Product Code : 01
Product Description

With sincerity and hard work of our professionals, we are able to manufacture and supply superior quality Mobile Toilet Van 10 Seater. The offered van has 10 toilet compartments equipped with wash basin and proper water supply. It is also provided with a sludge tank to maintain proper hygienic conditions. Mobile Toilet Van 10 Seater has proper lightening and the compartments are mounted on a sturdy platform with railing for proper safety. It is available in various sizes, designs and colors to choose from.

Features:



  • Ideal for outdoor gatherings and construction sites

  • Enhanced functional life

  • Weather and corrosion proof























Technical Specification :

Mobile Toilet Van (10 seater)

Particulars

Size

Length (l) - 5.7M, Width (W) -3M (With both side pathways), Height from ground level (H) -3.15M

Base Frame

Shall be fabricated from M. S. Channel of size 150 X75mm, 75 X 40mm and 100 X 5mm

Cabin Structure

Shall be fabricated by using M.S. Angle of size 40 X 40 X 6mm, M.S. Tee of size 50 X50 X6m & 40 X40 X5mm etc.

Cabin Panel

Cabin Panel shall be approx 8mm to 9mm thick (Covered with FRP ISO-Gel coat, Resin, Cobalt, Catalyst, Pigments etc., Sandwiched FRP ply core sheet)

Door Shutters

Door shutters for each cabin shall be of size 6' x 2.3' approx. (Made from using M.S. Angle of size 25x25x3mm and M. S. Flat of size 25x3mm covered with FRP ISO-Gel coat, Resin, Cobalt, Catalyst, Pigments etc., Sandwiched FRP ply core sheet with Tower Bolt, door handles, Locking Bolt etc.

Roof Structure

Shall be fabricated by using M.S. Angle of size 40x40x6mm and 32x32x3mm covered with 2mm to 2.5 mm thick transparent fibreglass sheet.

Platform

Shall be fabricated by using M.S. Angle of size 40x40x6mm and M.S. Flat of size 25x3mm duly covered with FRP plate. Side railing shall be provided by using M.S. Box Pipe 2” x1” and M.S. Angle of size 40x40x5mm.

Flooring

Floor panel integrated with squatting pan, footrest and skirting will be FRP molded.

Sludge Tank

Fabricated by using FRP ISO-gel coat, resin, Cobalt, Catalyst, Pigments etc. Capacity of sludge tank will be 2600 Ltr. Approx. The tank shall be connected with gas discharge PVC pipes.

Water Tank

Water tank of capacity 1000ltr. Will be provided.

Toeing Arrangement

Shall be fabricated by using M.S Channel of size 100mm x 50mm. Thrust Bearing, Bearing holder and toeing hook with spring, etc. and other necessary fittings.

Wash basin

Two FRP material wash basins of better quality shall be provided on the rear side

Disposal

For disposal of sludge 110 mm gate valves with hose nipple and 100mm hose pipe of 20’ length provided.

G.I. Fitting

Every toilet cabin with water connection of 15mm DIA G. I. Pipe and other fitting.

Stairs

Proper Stairs (2 Nos. Stairs assay- 1 for each side)

Paint

Two coats of anti – corrosive zinc base primer, and two coats of sky blue paint or as per your choice.

Electric Points

Electric points with light arrangement will be provided.

Suspension

Shall be consisted with 2 Nos. M.S square axles (size) with taper roller bearing, hub, road spring arrangement, 4 Nos. tyre& tube, with size 7.50 X 16 ply etc.

Tool Box

One tool box cabin with locking arrangements shall be provided.
