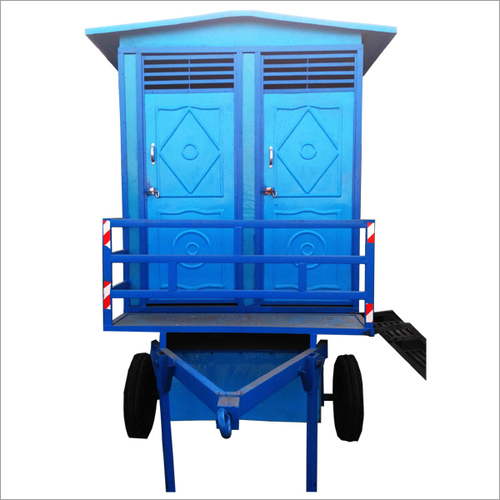

Mobile Toilet Van 2 Seater

Mobile Toilet Van 2 Seater
Mobile Toilet Van 2 Seater
Product Code : 09
Product Description

We are engaged in manufacturing and supplying high-quality Mobile toilet van 2 seater. The offered toilet van is designed using high-quality material with the aid of modern techniques. It is available in various sizes and colors with the option of Indian commode and European commode. Mobile toilet van 2 seater has two different compartments and is equipped with proper water supply. It is tested thoroughly on various parameters to ensure the quality and safety of the product.

Key Points:



  • Mounted on sturdy movable trailer

  • Proper air ventilation

  • Strong construction























Specification :

Mobile Toilet Van (2 seater)

Particulars

Size of Mobile Toilet Van

Length (l) - 2.20M, Width (W) -2M , Height from ground level (H) -3M

Base Frame

Shall be fabricated from M. S. Channel of size 150 X75mm, 75 X 40mm and 100 X 5mm

Cabin Structure

Shall be fabricated by using M.S. Angle of size 40 X 40 X 6mm, M.S. Tee of size 50 X50 X6m & 40 X40 X5mm etc.

Cabin Panel

Cabin Panel shall be approx 7mm to 8mm thick (Covered with FRP ISO Gel coat, Resin, Cobalt, Catalyst, Pigments etc., Sandwiched FRP ply core sheet)

Door Shutters

Door shutters for each cabin shall be of size 6’ x 2.3’ approx. (Made from using M.S. Angle of size 25x25x3mm and M. S. Flat of size 25x3mm covered with FRP ISO-Gel coat, Resin, Cobalt, Catalyst, Pigments etc., Sandwiched Frp ply core sheet with Tower Bolt, door handles, Locking Bolt etc.

Roof Structure

Covered from water tank made from FRP ISO-Gel coat, Resin, Cobalt, Catalyst, Pigments etc.

Platform

Shall be fabricated by using M.S. Angle of size 40x40x6mm and M.S. Flat of size 25x3mm duly covered with FRP plate. Side railing shall be provided by using M.S. Box Pipe 2” x1” and M.S. Angle of size 40x40x5mm.

Flooring

Floor panel integrated with squatting pan, footrest and skirting will be FRP melded.

Sludge Tank

Fabricated by using FRP ISO-gel coat, resin, Cobalt, Catalyst, Pigments etc. Capacity of sludge tank will be 400 Ltr. Approx. The tank shall be Connected with gas discharge PVC pipes.

Water Tank

Water tank of capacity 200ltr. Will be provided.

Toeing Arrangement

Shall be fabricated by using M.S Channel of size 100mm x 50mm. Thrust bearing, Bearing holder and toeing hook with spring, etc. and other Necessary fittings.

Wash basin

Two FRP material wash basins of better quality shall be provided on the rear side

Disposal

For disposal of sludge 110mm gate valve with hose nipple.

G.I. Fitting

Every toilet cabin with water connection of 15mm DIA G. I. Pipe and Other fitting.

Stairs

Proper Stairs (1 Nos. Stairs assy- 1 for each side)

Paint

Two coats of anti - corrosive zinc base primer, and two coats of sky blue Paint or as per your choice.

Electric Points

Electric points with light arrangement will be provided.

Suspension

Shall be consisted with 1 Nos. M.S square axles with, 2 Nos. tyre & tube.
