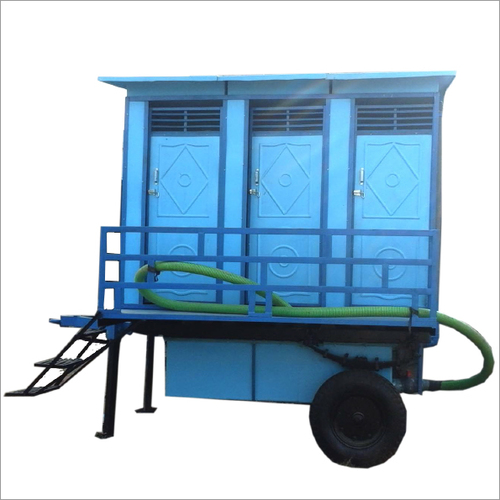

Mobile Toilet Van 6 Seater

Mobile Toilet Van 6 Seater
Mobile Toilet Van 6 Seater
Product Code : 03
Product Description

Our firm is counted amongst the leading manufacturers and suppliers of Mobile Toilet Van 6 Seater. The offered toilet van is extensively used in areas like marriage halls, rallies, fairs, mines, construction sites and other similar areas. It is fabricated using high-quality material and tested thoroughly on various quality parameters. Mobile Toilet Van 6 Seater has six separate compartments and come with wheel support for easy handling & transportation. It is fitted with a mirror, light, inbuilt water supply and washbasin for maintaining proper hygienic conditions.

Features:



  • Aesthetically pleasing design

  • Resistance against corrosion

  • Durable and sturdy construction























Technical Specification :

Mobile Toilet Van (6 seater)

Particulars

Size of Mobile Toilet Van

Length (l) - 4.2M, Width (W) -3M (With both side pathways), Height from ground level (H) -3.15M

Base Frame

Shall be fabricated from M. S. Channel of size 150 X75mm, 75 X 40mm and 100 X 5mm

Cabin Structure

Shall be fabricated by using M.S. Angle of size 40 X 40 X 6mm, M.S. Tee of size 50 X50 X6m & 40 X40 X5mm etc .

Cabin Panel

Cabin Panel shall be approx 4mm to 6mm thick (Covered with FRP ISO Gel coat, Resin, Cobalt, Catalyst, Pigments etc., Sandwiched FRP ply core sheet)

Door Shutters

Door shutters for each cabin shall be of size 6’ x 2.3’ approx. (Made from using M.S. Angle of size 25x25x3mm and M. S. Flat of size 25x3mm covered with FRP ISO-Gel coat, Resin, Cobalt, Catalyst, Pigments etc., Sandwiched FRP ply core sheet with door handles, Locking Bolt etc

Roof Structure

Shall be fabricated by using M.S. Angle of size 40x40x6mm and 32x32x3mm and covered with FRP water tank.

Platform

Shall be fabricated by using M.S. Angle of size 40x40x6mm and M.S. Flat Of size 25 xs3mm duly covered with FRP plate. Side railing shall be provided by using M.S. Box Pipe 2” x1” and M.S. Angle of size 40x40x5mm.

Flooring

Floor panel integrated with squatting pan, footrest and skirting will be FRP molded.

Sludge Tank

Fabricated by using FRP ISO-gel coat, resin, Cobalt, Catalyst, Pigments etc. Capacity of sludge tank will be 1600 Ltr. Approx. The tank shall be Connected with gas discharge PVC pipes.

Water Tank

Water tank of capacity 500ltr approx,(FRP Material). Will be provided on The roof of mobile toilet van.

Toeing Arrangement

Shall be fabricated by using M.S Channel of size 100mm x 50mm. Thrust bearing, Bearing holder and toeing hook with spring, etc. and other Necessary fittings.

Wash basin

Two FRP material wash basins of better quality shall be provided on the rear side

Disposal

For disposal of sludge 110mm gate valve with hose nipple, and tank nipple Provided

G.I. Fitting

Every toilet cabin with water connection of 15mm DIA G. I. Pipe and Other fitting.

Stairs

Proper Stairs (2 Nos. Stairs assay- 1 for each side)

Paint

Two coats of anti – corrosive zinc base primer, and two coats of sky blue Paint or as per your choice.

Electric Points

Electric points with light arrangement will be provided.

Suspension

Shall be consisted with 1 Nos. M.S square axles (74 inch) with taper roller bearing, hub, road spring arrangement,2 Nos. tyre& tube, with size 7.50 X 16 ply etc.
